Showcase: AI agents working with HiNC

This page shows, one published case at a time, how an AI agent uses HiNC to establish, evaluate and help a machining project.

HiNC simulates a CNC machining job (machine, fixture, stock, tool and holder, NC program) and reports what the cut does: cutting depths and forces, times, collisions, and the difference between the machined part and the design.

Each case below is told this way: what the agent was given and what was missing, how it built and ran the simulation through HiNC's web API and managed the job, every small dilemma it met (what it saw, how it found the cause, how it solved it), and what the result tells a machining engineer, a teacher or a student, and someone deciding whether to work this way.

The cases come from public sources whose licences allow reuse; none comes from a client. The HiNC project the agent built is its working material and is not published. If you want the data, fetch it from the original source listed with each case, and keep the attribution the source asks for with anything you share. Original links may stop working some day, so where the licence allows, this site keeps a backup copy of the original files (the last column of each case's table), with the licence and attribution the source requires. The full case records, with every dilemma in detail, are in the Showcase section of the HiAPI documentation site.

NC optimization

Some of the cases below, taken one step further. An AI agent hands the programs a case has already accepted, and for some cases an earlier or hand-revised version of them too, to HiNC's feed optimization, replays the optimized programs on the same simulated machine, and compares machining time, spindle load, cutting force, tool deflection and the machined shape before and after, against pass criteria it wrote down first. Each page also says what the agent protected from the optimizer, such as finishing passes kept at their programmed feed.

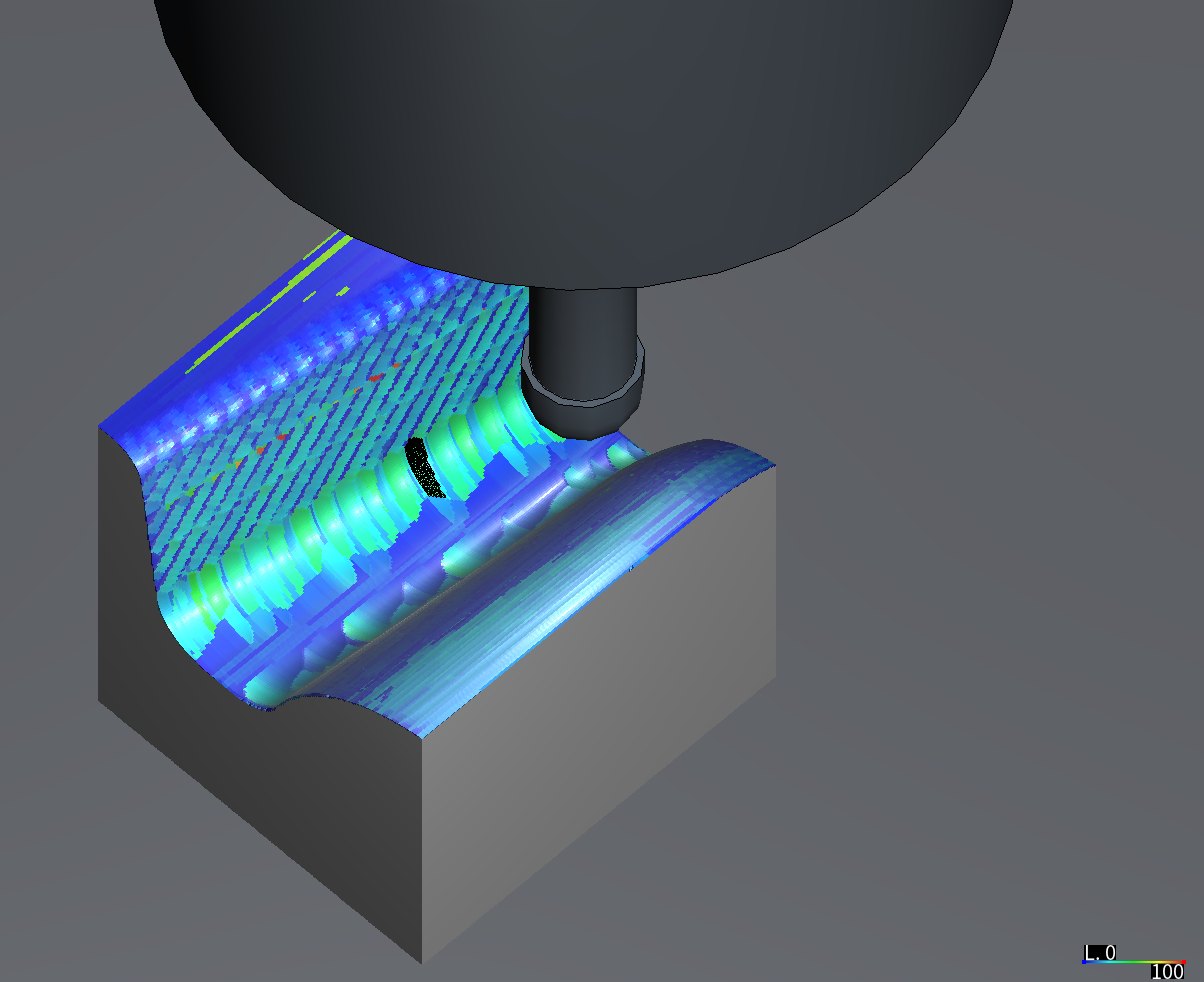

HiNC simulation of the optimized programs over a probe block at the rib-groove corner: the R1.5 ball's shank below a large shrink-fit chuck, its neck and ball down in the groove; the groove's faces coloured by force, green and blue along the corner

Connecting-rod forging die, optimized

3-axis

HiNC's feed optimization on the programs of a connecting-rod forging die: kept from running slower than the hand-revised programs it takes 24.5 % off them, and it shows that the R1.5 ball's corner stays over its limit even at the lowest feed.

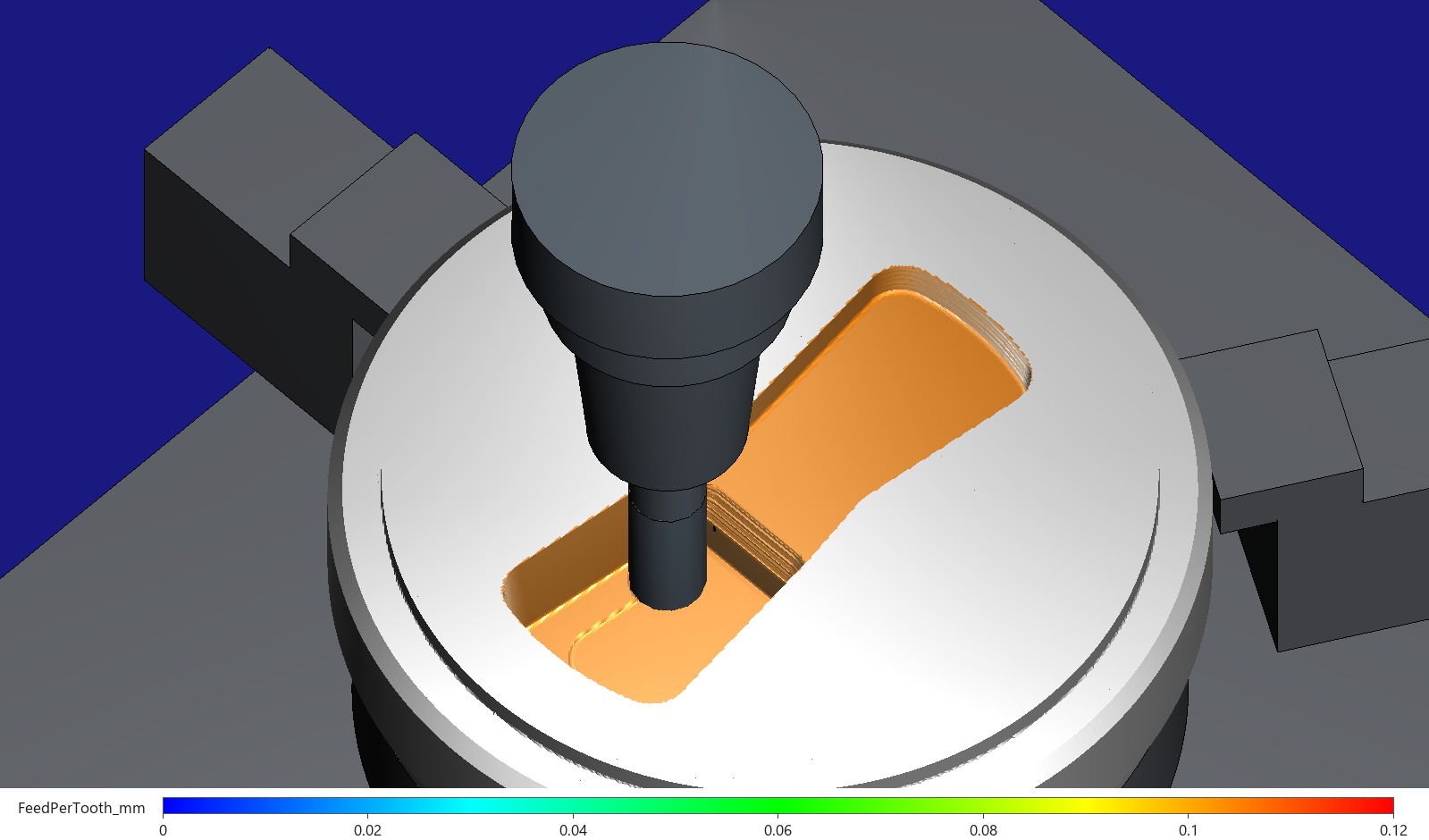

The upper plate in HiNC from its joint face after the feed optimization: a 16 mm end mill in its shrink-fit chuck paused in a porthole layer, every face it has cut coloured orange, at the feed-per-tooth ceiling

Heatsink porthole die, optimized

3-axis

HiNC's feed optimization on the eight programs of an aluminium extrusion die: 608.6 down to 529.1 minutes, the roughing about a third shorter, the finishing held at its programmed chip, and no feed that keeps the 3 mm fin-relief cutter within 30 µm.

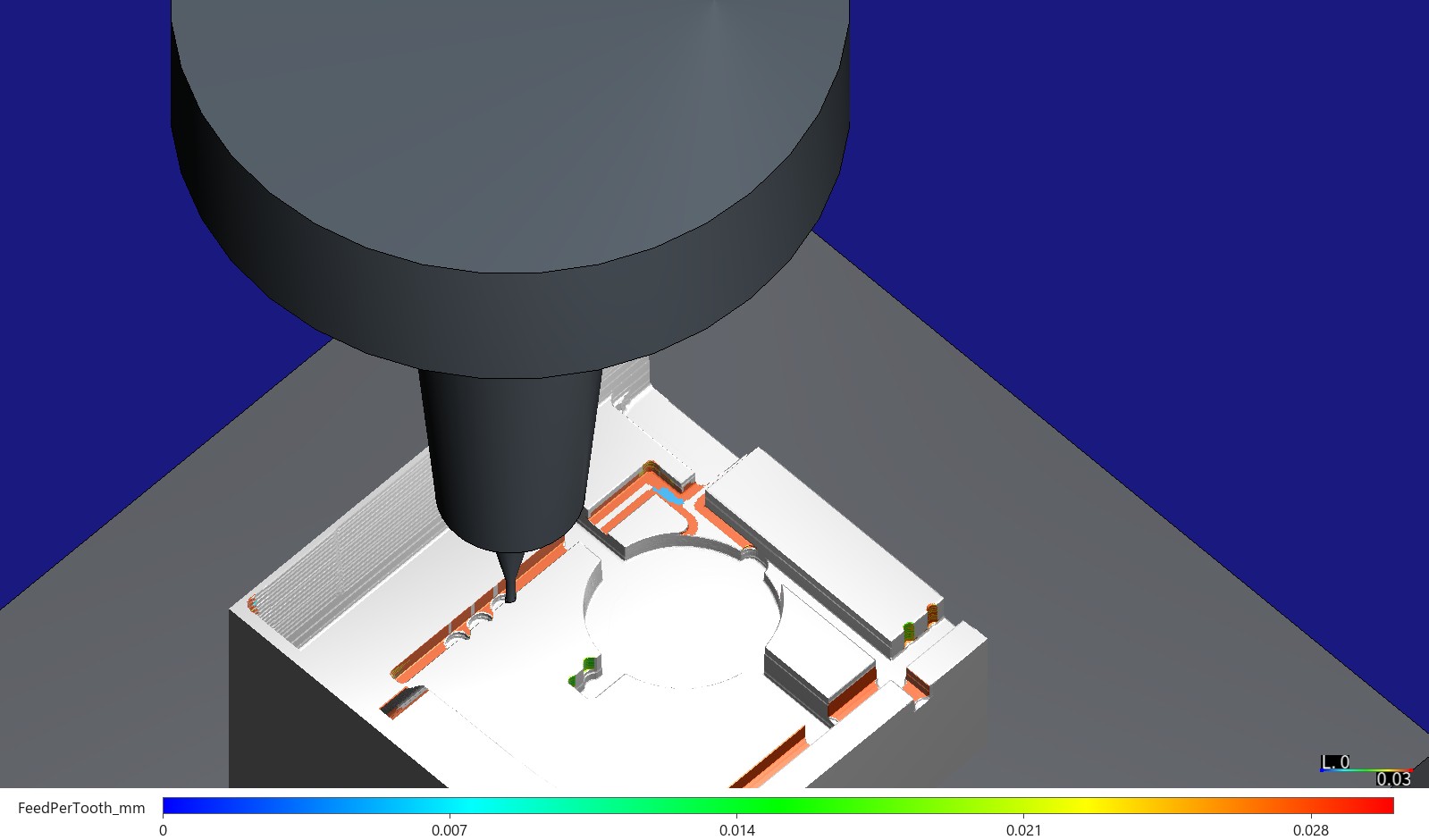

HiNC simulation of a trimmed patch of the moving insert after the feed optimization: the 1 mm end mill below its shrink-fit chuck in a rib slot, the slot faces red and orange at the catalogue's feed per tooth, one small blue patch at a corner

Antenna-cover injection mould, optimized

3-axis

HiNC's feed optimization on the micro-tool programs of an injection-mould insert: the moving insert drops from 12.0 to 7.9 hours, most of the saving feed through air, and the optimizer finds by itself the corners the agent's hand rules had found; no feed holds the Ø1 mm tool's bend within 10 µm.

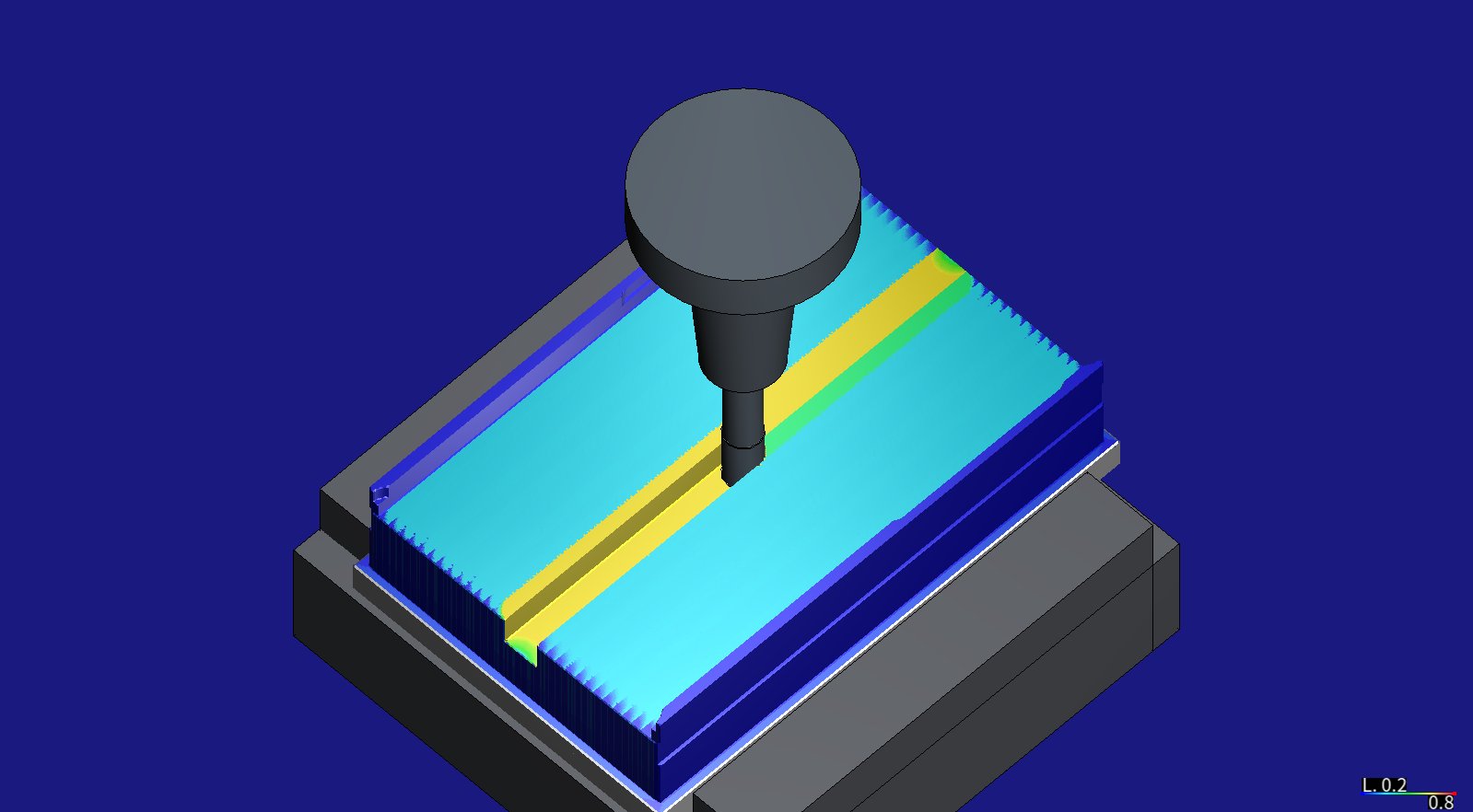

The bottom shell in HiNC after the feed optimization: the 12 mm long-reach end mill below its shrink-fit chuck in the cavity, the floor coloured by spindle power, the band of the full-width cut yellow at the target and the rest cyan at about a third

Jetson AGX Thor enclosure, optimized

3-axis

HiNC's feed optimization on three programs of an aluminium enclosure: 76 minutes off, the 12 mm roughing limited by the chip the agent allowed rather than by the spindle, the cover's finishing held within 25 µm by a ceiling per line, and 37 % off a grille that only looked as if it were at its limit.

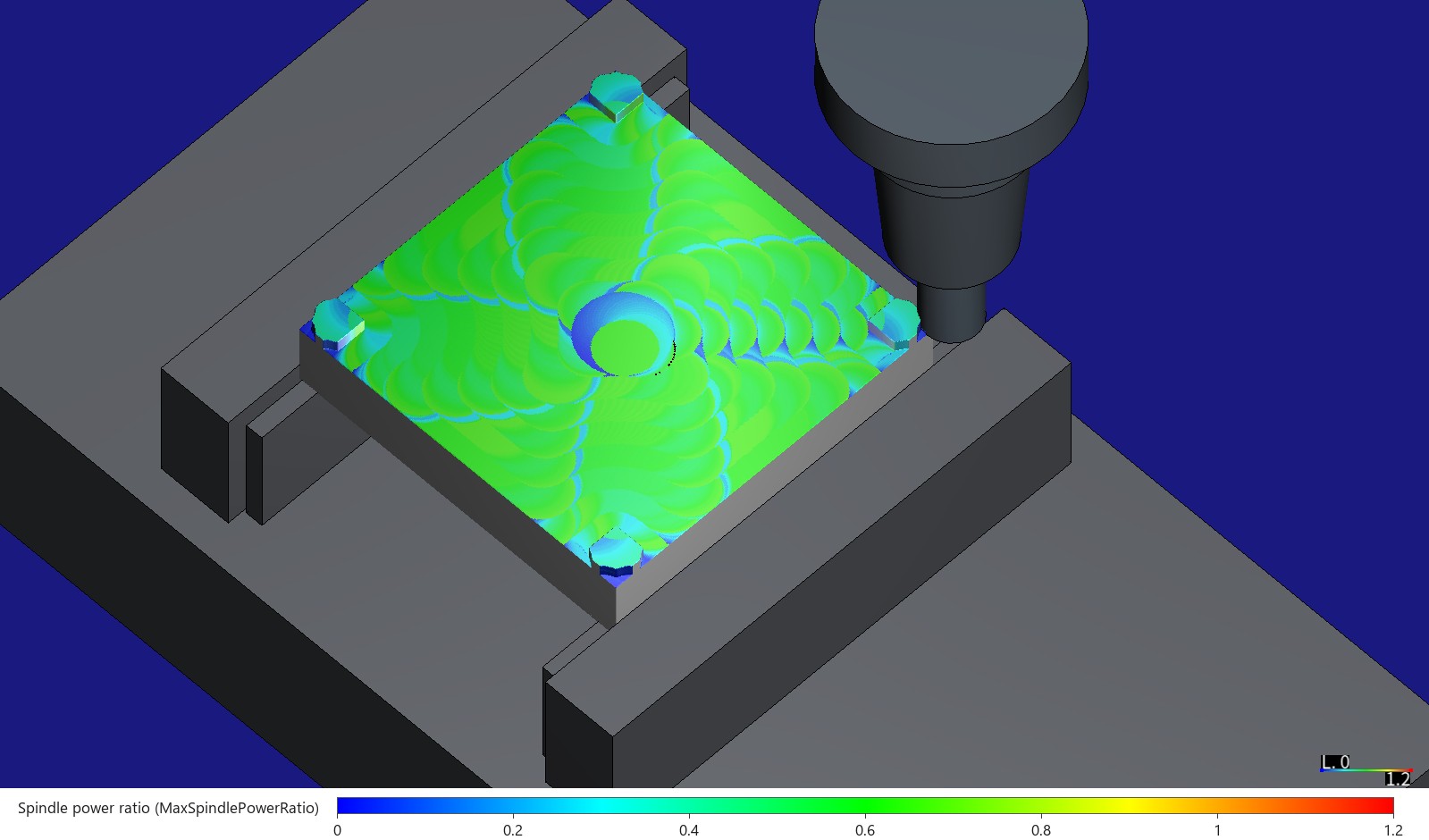

A CubeSat frame plate in the vise in HiNC after the feed optimization: the 16 mm end mill below its shrink-fit chuck at a corner of the plate, the level it has just cut coloured by spindle power, green throughout at or under the target

SpaceTeamSat1 CubeSat structure, optimized

3-axis

HiNC's feed optimization on the first clamping of a CubeSat frame plate: the agent's first CAM program brought to the spindle target and the finishing deflection limits for 3.8 % more time, 19.9 % faster than the program the agent had tuned by hand, and 9.9 % taken off the hand-tuned program itself, two thirds of it from its ramps.

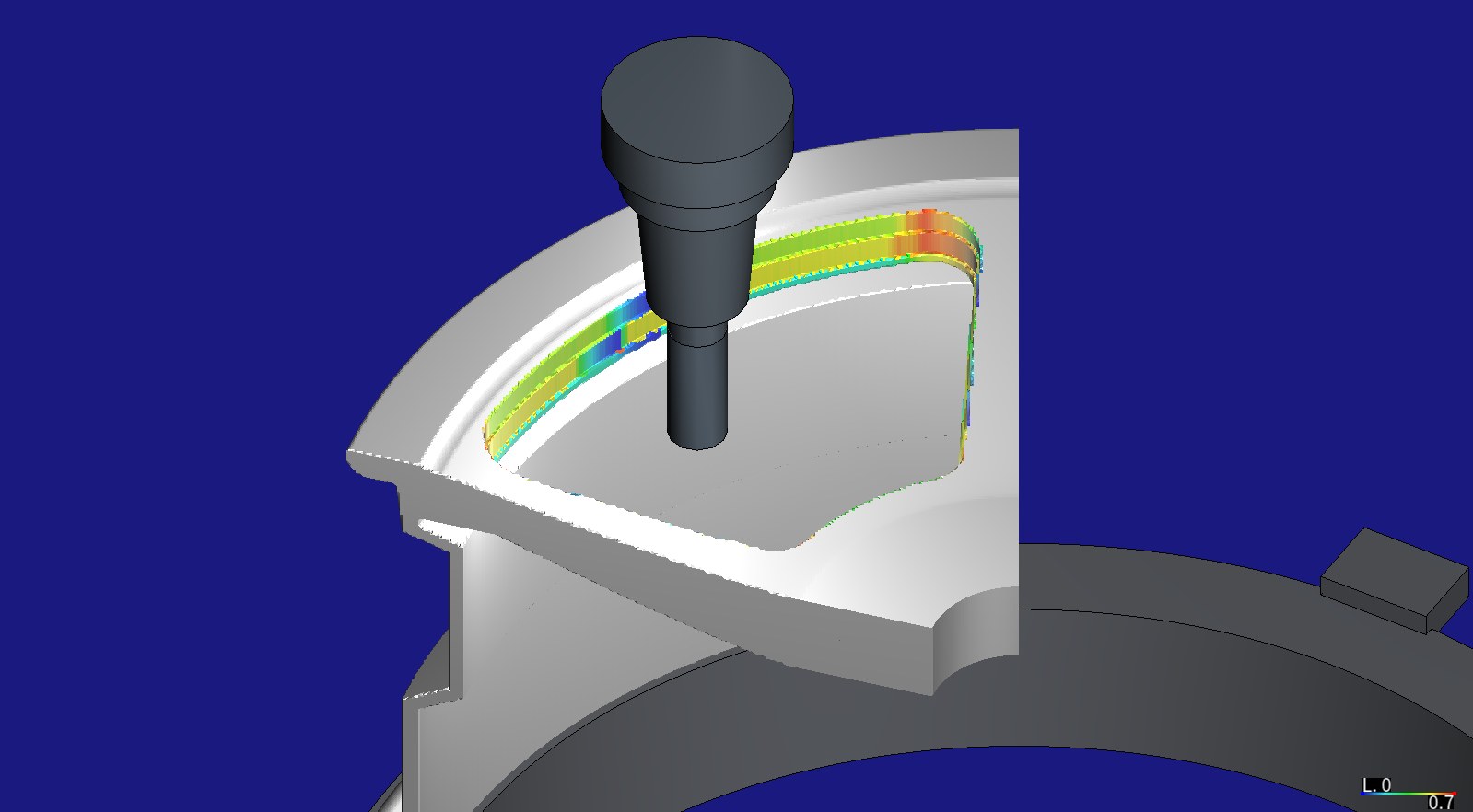

The wheel in HiNC after the feed optimization: a 20 mm end mill in its shrink-fit holder above one window the optimized roughing program has cut, the window walls coloured by spindle power, yellow to red and highest at the corner

17-inch forged wheel, optimized

3+2 / 5-axis

HiNC's feed optimization on the five-axis programs of a 17-inch forged aluminium wheel: 17 min 25 s down to 9 min 40 s, with the finishing passes kept at their programmed feed and no line slower than programmed.

Dies and moulds

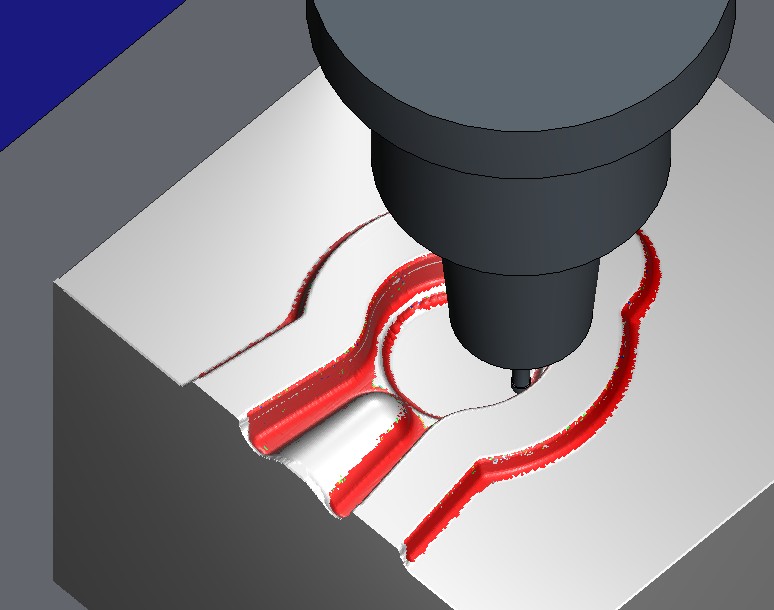

A trimmed window of the lower die in HiNC: the R1.5 long-neck ball in an HSK-A63 shrink chuck finishing beside the small-end boss, the faces this tool has cut coloured red

Connecting-rod forging die

3-axis

An agent designed this closed-die forging die for an aluminium connecting rod from one drawing and one photo. HiNC showed the R1.5 ball's tip bending up to 112 µm in the rib grooves' R1.5 corners, against a 12.5 µm limit.

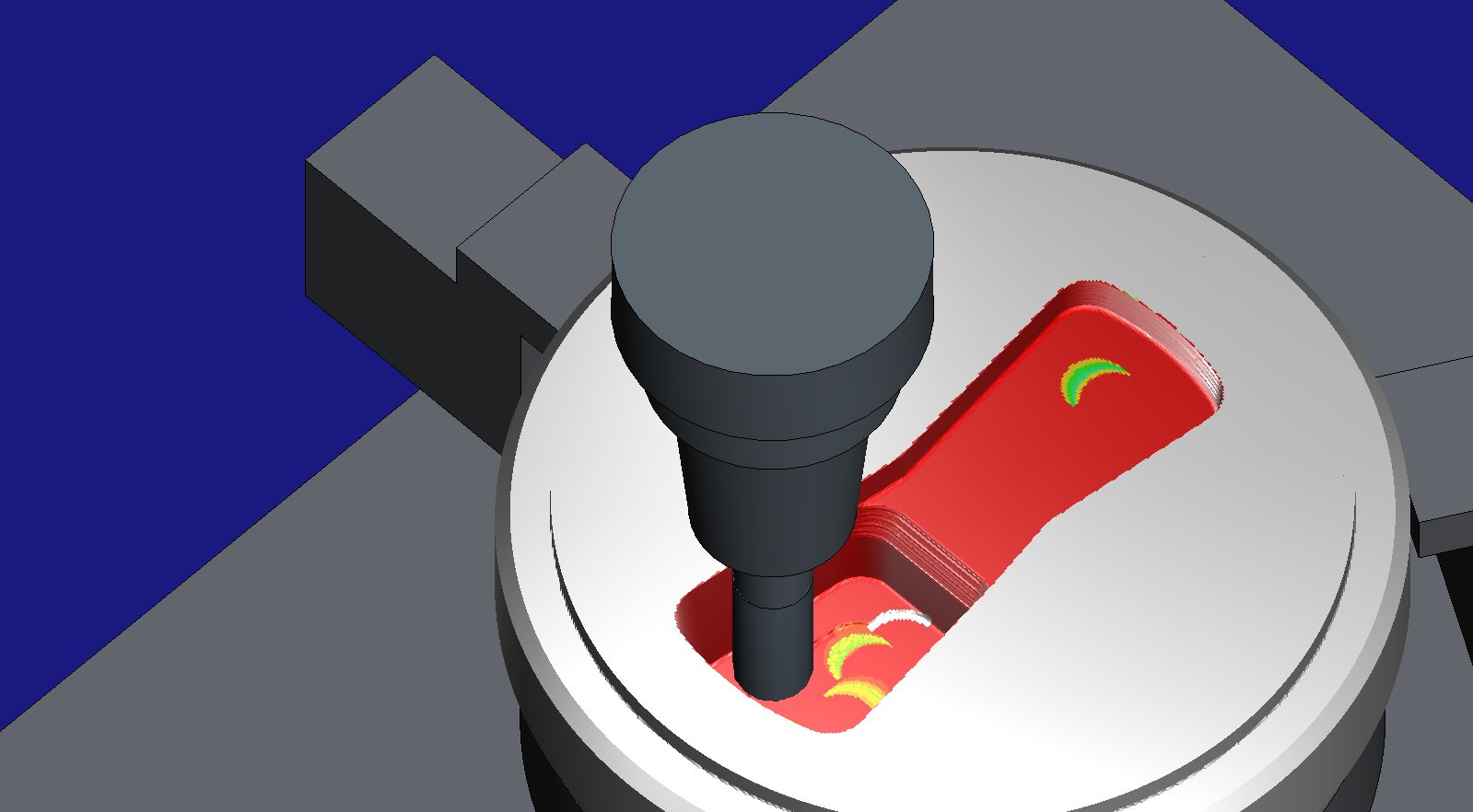

The upper plate in HiNC from its joint face: a 16 mm end mill 55 mm out of a shrink-fit chuck roughing the first porthole, the second porthole and the welding chamber's outline beside it

Heatsink porthole die

3-axis

An agent rebuilt this aluminium extrusion die from a paper's drawings. In HiNC the 3 mm cutter bends 106–130 µm in the fin slots, against a 30 µm limit, and needs 7.0 h, so the fin relief goes to EDM.

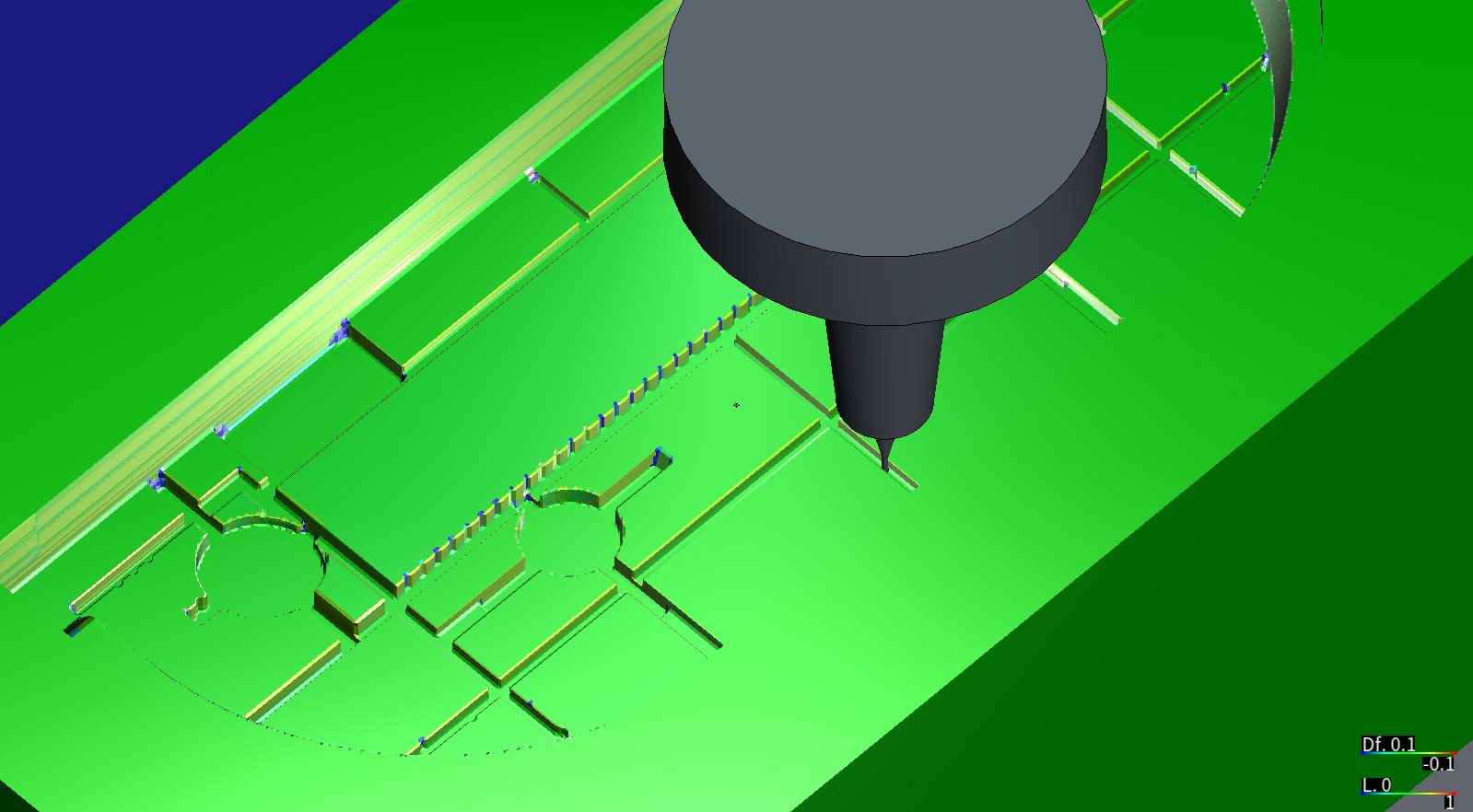

The finished B insert in HiNC, green almost everywhere in the comparison with the design: the 1 mm end mill in its shrink-fit chuck down in a rib slot, the rib grid's slots, a long plateau and two round boss openings around it

Antenna-cover injection mould

3-axis

An agent derived both inserts of an injection mould from a published antenna cover and wrote every toolpath with its own CAM. A load HiNC read exposed a false step of up to 2.4 mm that the agent's own code had put into the mould.

Wheels

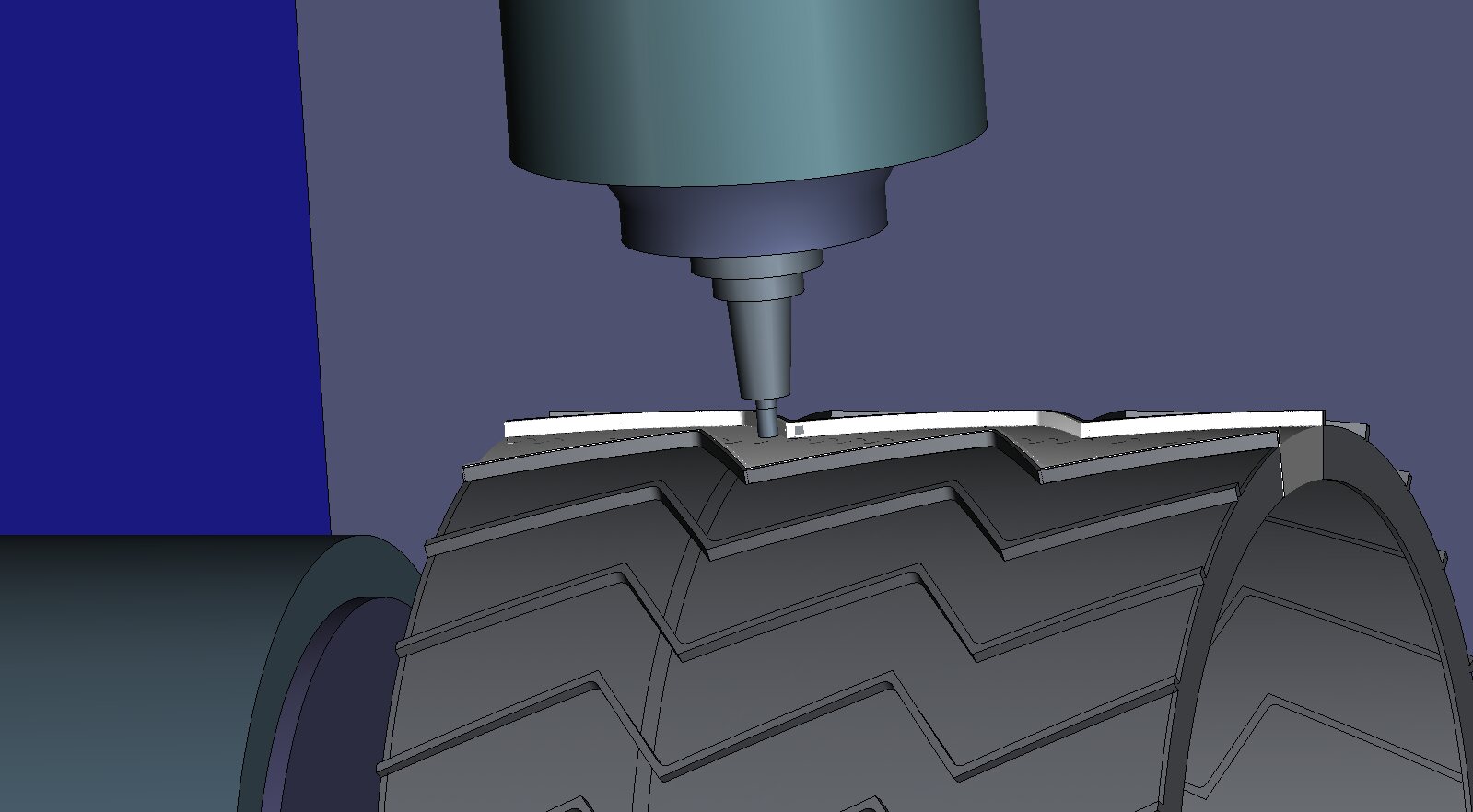

The whole rebuilt wheel in HiNC between the rotary table and the tailstock of a generic four-axis machine; a 10 mm end mill in a shrink-fit chuck stands at the floor of the freshly cut chevron groove

Mars rover wheel

4-axis

An agent modelled Curiosity's wheel from published numbers and a photograph, and programmed one chevron groove for a four-axis machine. On the simulated part, 5,344 radial lines found the 0.75 mm skin at 0.750–0.759 mm, with no hole.

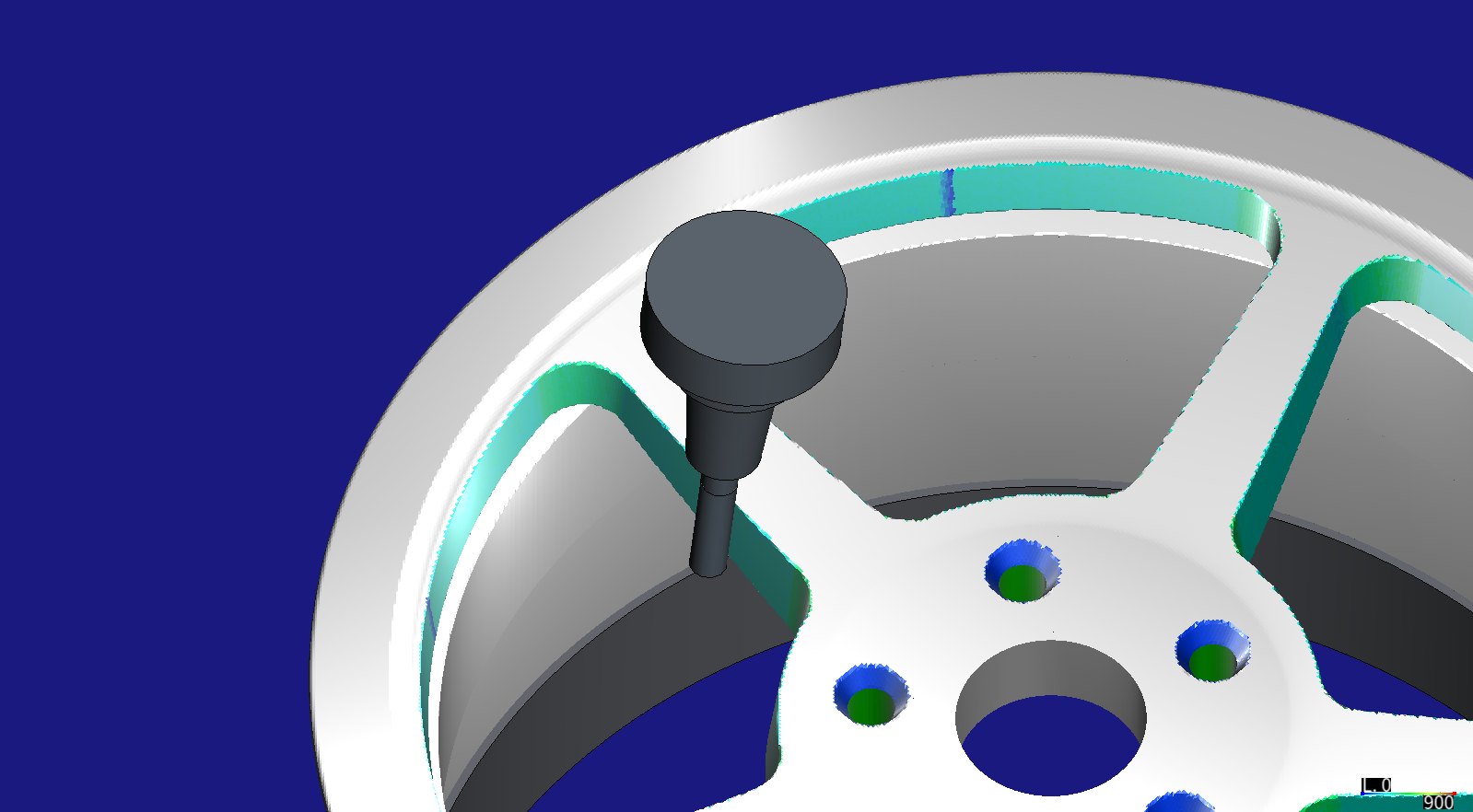

The wheel in HiNC seen from the face: a 12 mm end mill in its shrink-fit holder, tilted 7°, finishing the drafted side of a spoke inside a window; the window walls coloured by cutting force, the stud holes and their seats in view

17-inch forged aluminium wheel

3+2 / 5-axis

A one-piece forged 6061-T6 wheel that an agent designed from three public numbers and programmed in two five-axis set-ups. HiNC's feed optimization cut machining time from 17 min 25 s to 9 min 36 s, within the spindle's rating.

Impellers and blades

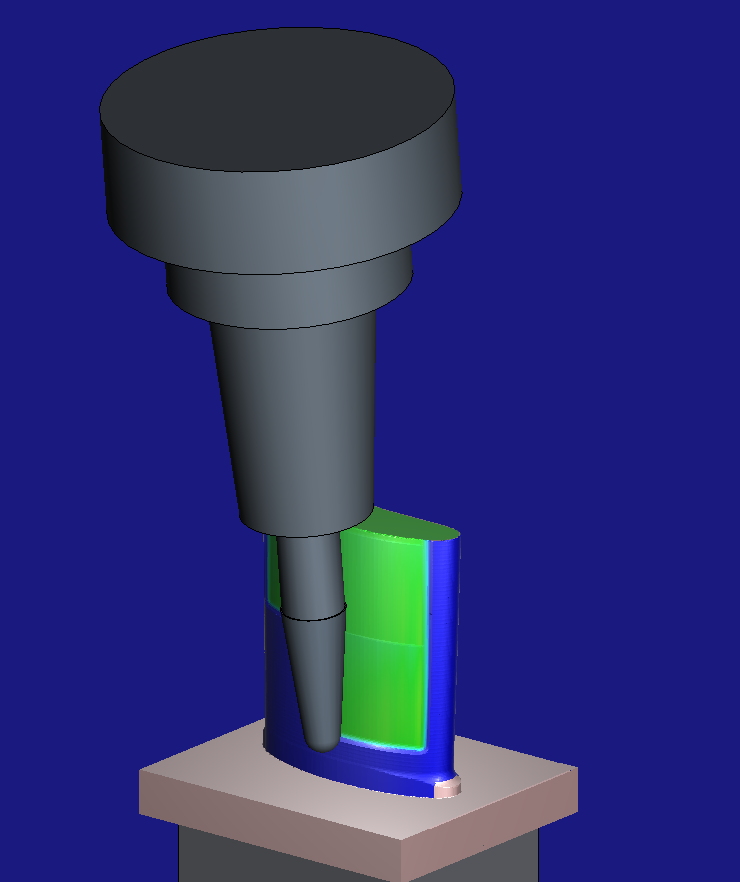

The tapered cutter in its shrink-fit holder half-way along the bottom G1 pass on the semi-finished blade: the two finished passes above are green, the semi-finished stock below is blue

BCAM thin blade

5-axis

A paper's thin steel blade, with NX and G1 flank finishes but no machine, holders or blade position. In HiNC, NX leaves up to +0.14 mm on the lower face; G1 stays within 0.024 mm at the paper's 25 points.

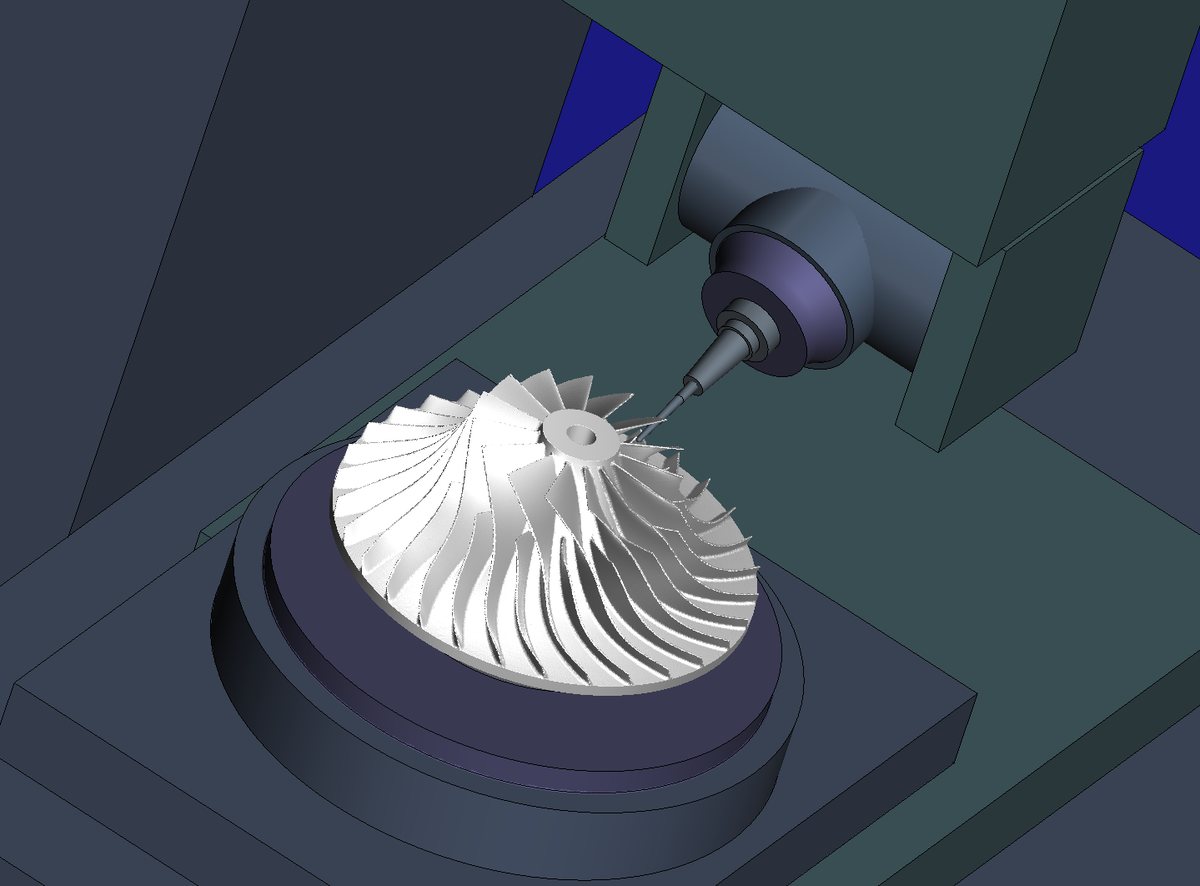

The machined impeller in HiNC on the rotary table of a generic five-axis machine: a tapered ball end mill in a shrink-fit chuck under the swivel head, tilted into a passage near the inlet

NASA HECC centrifugal impeller

5-axis

A centrifugal impeller 431.8 mm across the tips, given only as unitless coordinates; the agent wrote the five-axis path. HiNC predicted a broken tool on the last hub finish (stress ratio 3.5); reworked, it stayed short of HiNC's breakage rule.

Enclosures and structural parts

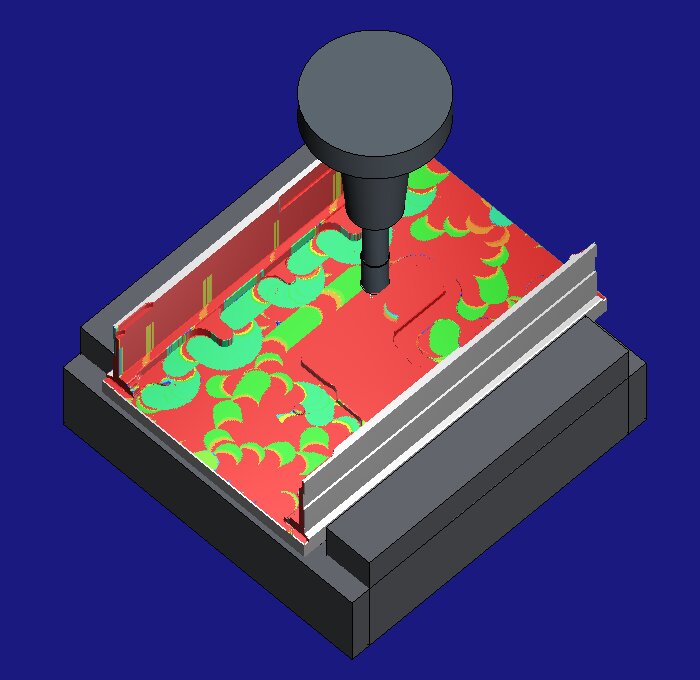

HiNC: a 12 mm long-reach end mill, 54 mm out of its shrink-fit chuck, finishing the floor of the bottom shell's 38.5 mm deep cavity, the chuck above the wall top; the faces this tool has cut are coloured

Jetson AGX Thor enclosure

3-axis

An agent wrote its own CAM for the four aluminium parts of an open-hardware enclosure, two set-ups each. Before any cut, HiNC caught a drill that would have hit the vice, a spindle asked for 3.3 times its rating and a 1.5 mm cutter bending 0.14 mm.

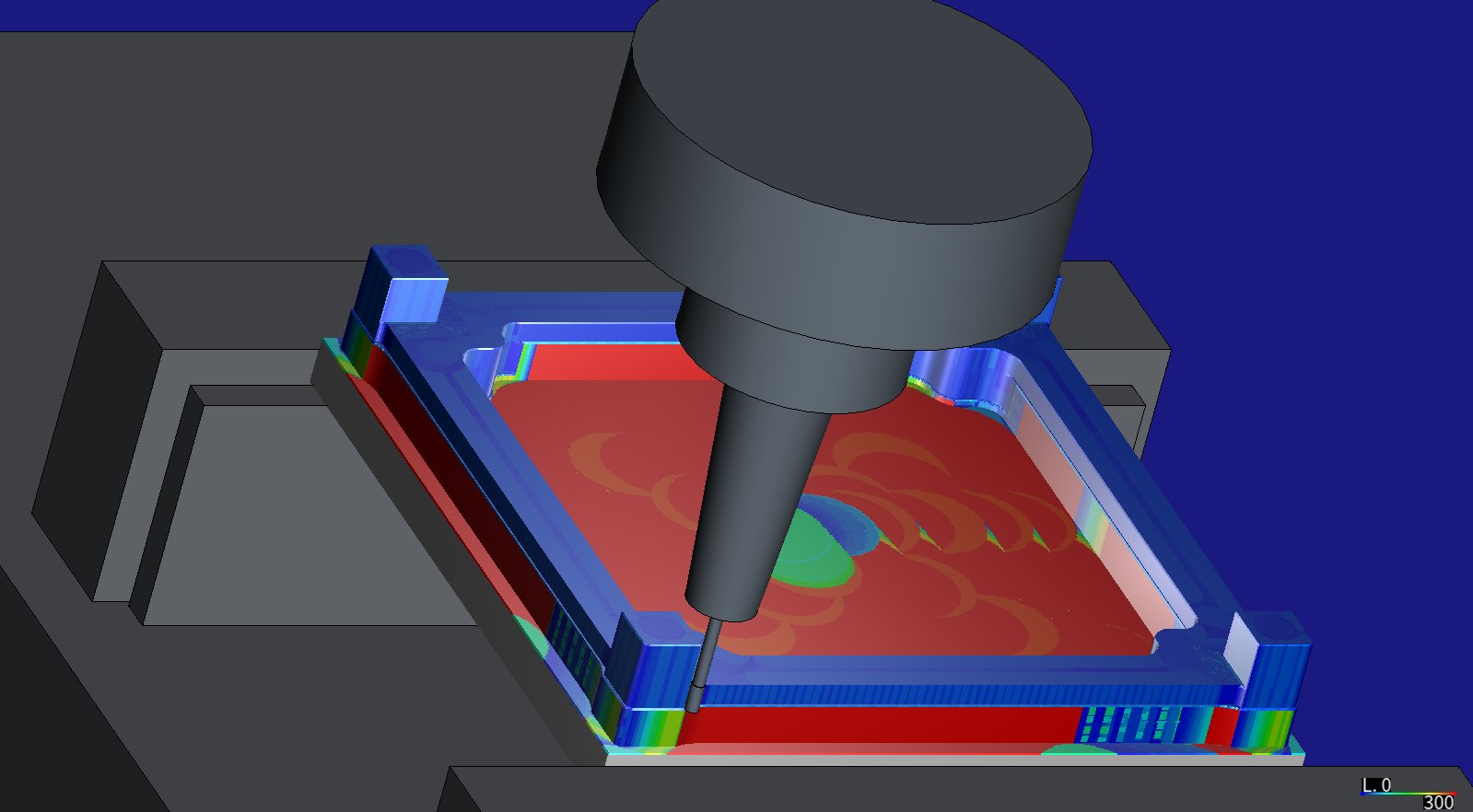

HiNC: plate X- of a CubeSat structure in the vise, a 2 mm end mill reaching from a slim shrink-fit chuck into an R1 corner of the frame; the part is coloured by cutting force

SpaceTeamSat1 CubeSat structure

3-axis

An agent wrote its own CAM for the six Al 7075 plates of a student team's CubeSat, in 24 clampings. HiNC showed the original programs asking the spindle for 1.6 times its rating and a 2 mm cutter bending 360 µm; the revised programs keep the finishing cutters within their deflection limits but for one step.

Test pieces and benchmark parts

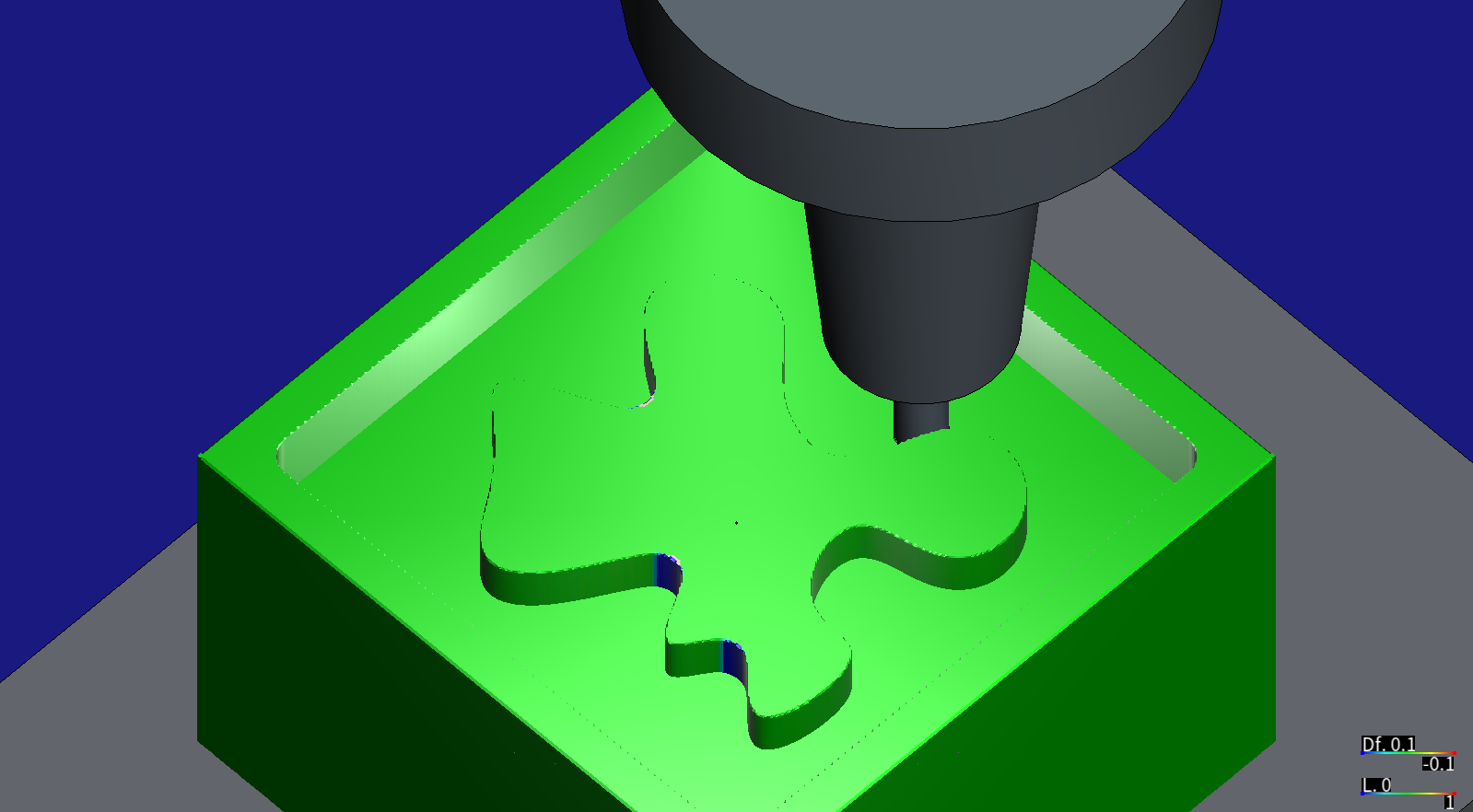

Part 7 in HiNC: the shrink-fit holder and 6 mm end mill at the free-form island in a square pocket, the part coloured green by the comparison with the design and blue at the island's three concave bay tips

RPTU 3-axis milling benchmark

3-axis

Ten benchmark parts with STEP models and NC programs but no set-up. Agents derived each program zero and found the stated block 1 to 3 mm short; part 7's program leaves material up to 0.7 mm thick at the island's bay tips.

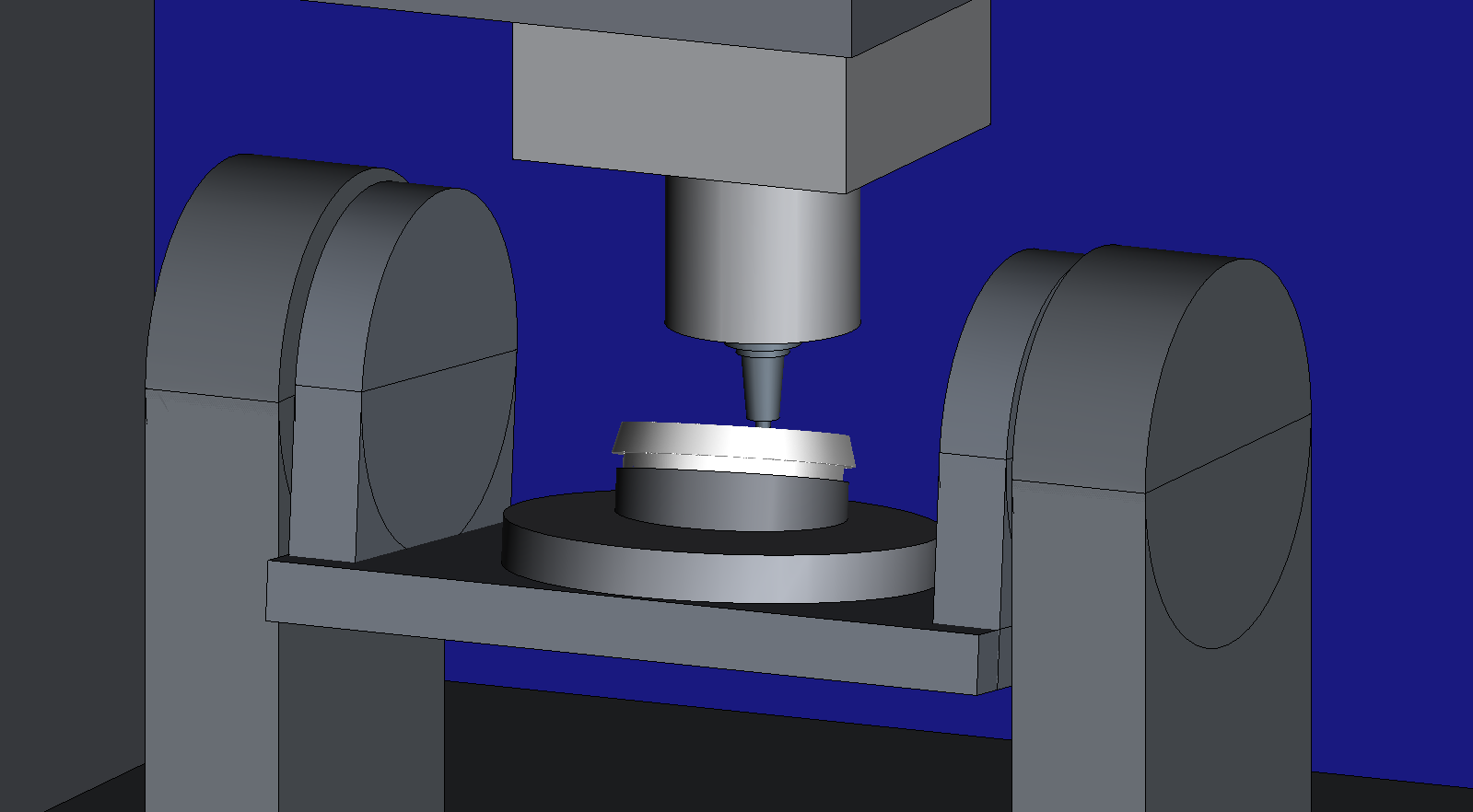

The cone frustum in HiNC: a Ø12.7 mm end mill in a shrink-fit holder finishing the edge of the frustum, which sits on its wedge fixture on the rotary table between the cradle's bearing housings

NIST five-axis test artifacts

5-axis

A cone frustum and a truncated square pyramid, given as drawings without model or program. The agent drew both and wrote the cutter locations; HiNC wrote the G43.4 program, and replaying it matches playing the cutter locations to 0.00001 mm in peak cutting depth.

THWS keychain

3-axis

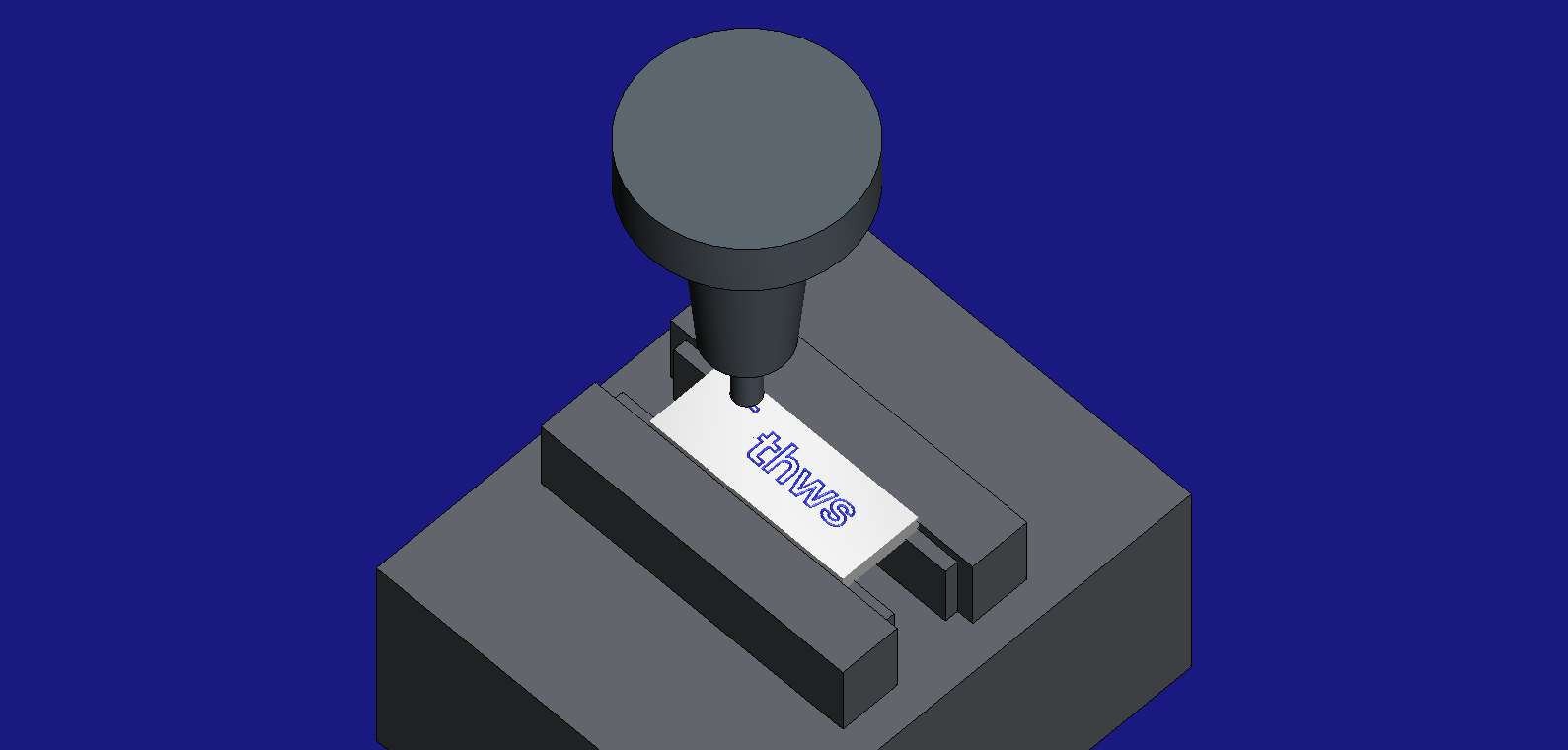

An engraved, drilled keychain plate from a Siemens 840D sl program, with no model or stock. The agent read the plate from the program; 13 of the 28.7 simulated seconds are 16 mm plunges and retracts at cutting feed.

Cutting experiments from papers

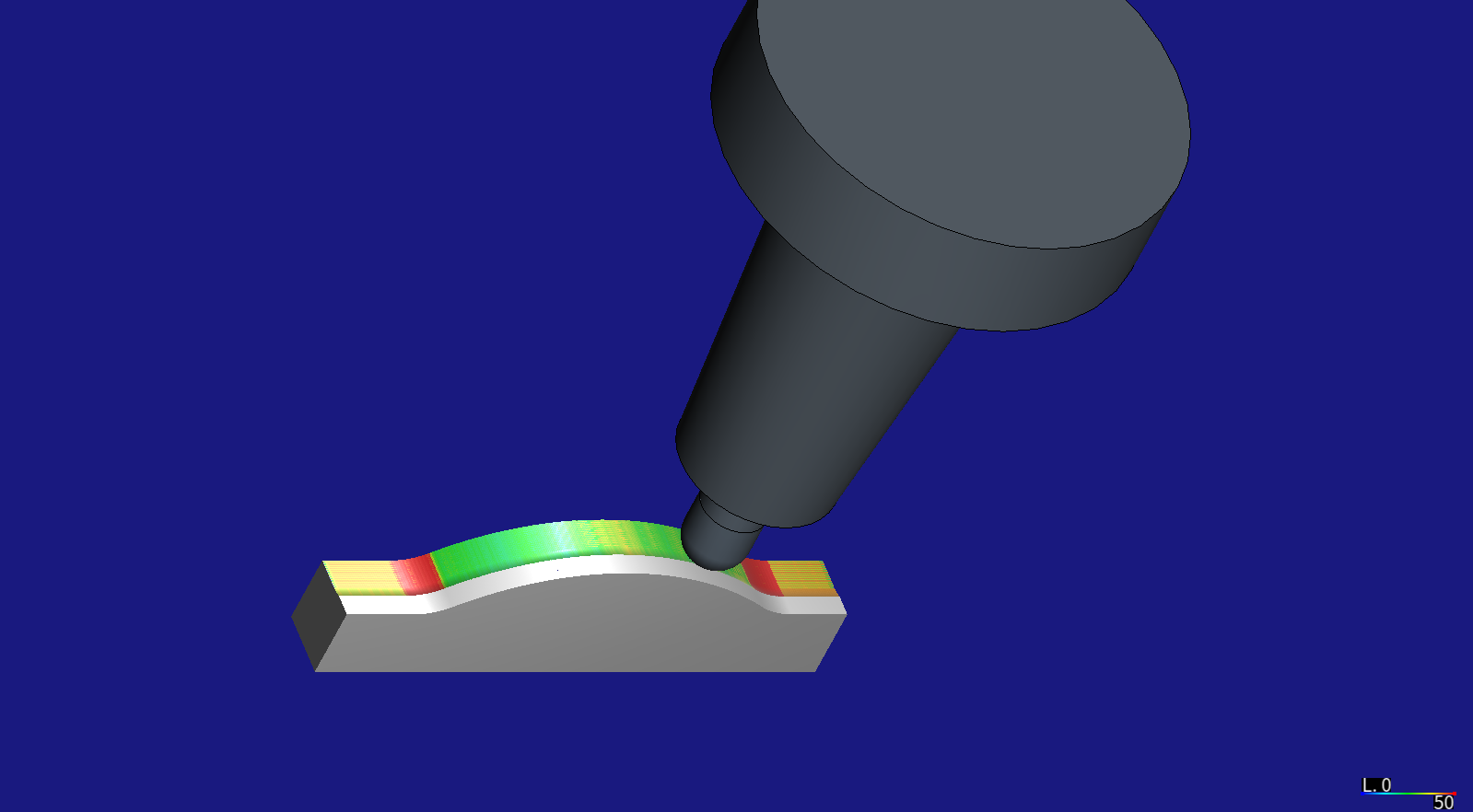

HiNC simulation: a ball end mill in a slim SK40 holder stopped on the convex face; the finished half of the band is coloured by the peak force of each spindle revolution, yellow on the flat lands, red in the small blends, green on the R45 face

Ball-end finishing in five raster directions

3-axis

Convex and concave R45 faces from an article with no model or program; the agent made both. The force's swing along a pass, 1 % along the cylinder axis to 31–49 % across it, ranks directions as measured roughness does.

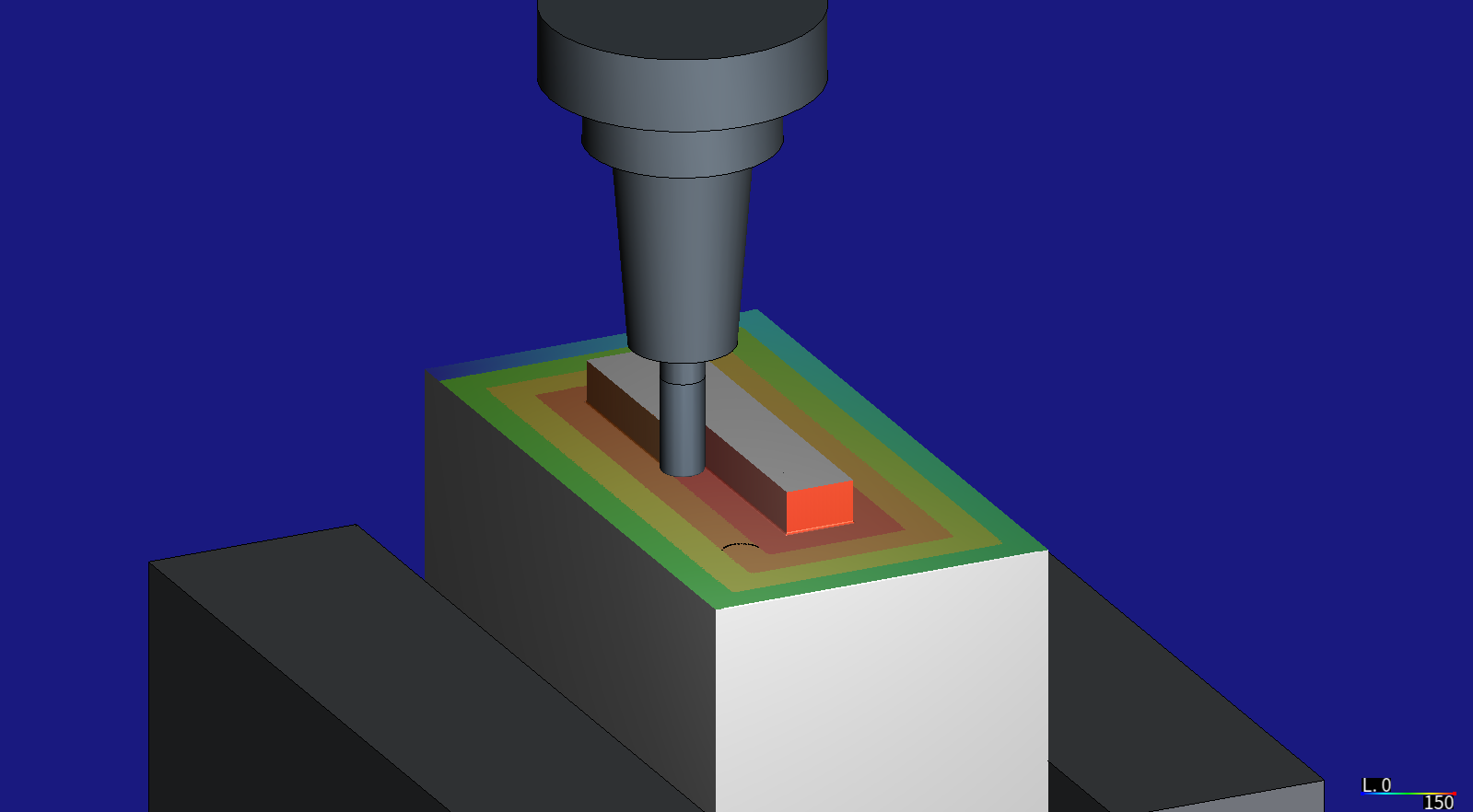

HiNC simulation: the Ø10 mm end mill in an 80 mm shrink-fit chuck, half-way along the last cycle of the first layer on a block held in a vice; the cut floor coloured in rings by the cutter's accumulated flank wear, green on the outer rings to red on the inner ones, round the uncut island

Rzeszow tool-life data set

3-axis

Fourteen end mills run to breakage in hardened 42CrMo4; the agent wrote the programs. Per cycle, HiNC wore the flank 1.67–1.70 times as fast at 8 mm radial depth as at 4.5 mm, the order the lives show.
