Signing In

The sign-in card is the /login route, and whether anyone ever reaches it is the service's decision rather than the browser's. With the gate on, the service's data and its live updates stay closed until a browser has signed in; with it off, the route sends every visitor straight back into the application. A sign-in buys admission and nothing more — the service matches a name and a password once, then carries the name only to label the sign-out button, and nothing it does afterwards depends on which account was used.

Whether the gate is on

The Auth section of the service's configuration decides it, through its Enabled flag. The flag falls back to off when nothing sets it, so a service whose configuration carries no Auth section, or carries one with the flag off, runs with no login at all. The configuration as shipped turns the flag on and supplies one account, so a service started from it asks for a sign-in.

The accounts are the Users list in that same section — username and password pairs, read once when the service starts. Every entry grants exactly the same access: there are no roles, no group memberships, and nothing at all is kept per account. There is also no way to create an account, change a password or recover one from inside the application. All three are edits to the service's configuration, made by whoever runs the service, and they take effect at its next restart.

What the gate closes is the service's own surface: the requests each screen makes for data, and the live channels that keep those screens current. It does not close the page. The application shell, the brand image and the sign-in card itself all reach a browser that holds no session: the brand image and the built bundle the card is drawn from are plain files, served before authorization is consulted, and the shell page is exempt from the gate outright.

Signing in

The card asks for one pair of credentials, under the prompt Please sign in to continue.

1. Type the account name into Username and the password into Password. The username field already holds the focus when the card appears, and the eye icon at the right of the password field toggles the typing visible.
2. Submit with the Sign In button, or by pressing Enter in either field.
3. Neither field is checked in the browser, so whatever is entered — an empty pair included — goes to the service, and a refusal comes from there rather than from the form. It arrives as one red line under the password field, Incorrect username or password, and the card stays as it is.

A successful sign-in reloads the application at the screen that was wanted. When the browser was sent to the card while trying to reach a particular screen, that address travels with it in the card's redirect query argument — ?tree= selection included — and is where the sign-in returns to. A browser that came to the card on its own lands on the Execution page.

Two smaller things the card carries. The grey line below the name is a version mark, the same version the menu bar shows from inside. And the card's own language is whichever this browser last used, or the browser's own language on a first visit, because the language setting belongs to the service and is behind the gate like everything else there; after signing in, the interface follows that setting — one value for everyone on the service — chosen in the Preference menu's language submenu (see Preferences).

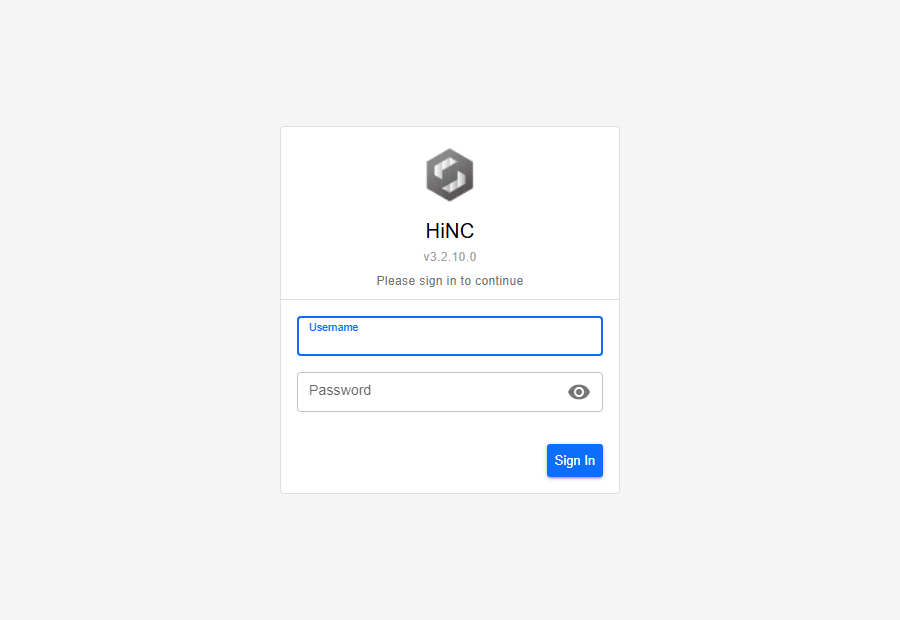

The sign-in card at /login, in a browser holding no session. The card is all the screen holds — none of the application frame is drawn behind it — with the version mark and the prompt under the name, the focus already in Username, and the eye toggle at the right of Password.

When the sign-in page does not appear

Three situations account for it, in the order they are likely.

The gate is off. With no Auth section, or with Enabled off, the /login route redirects every visitor back into the application instead of showing a form. From inside, the quickest tell is the menu bar: a service with no gate carries no sign-out button.

The browser is already signed in. Its session cookie is still good, so the card is skipped and the screen that was asked for opens directly.

The service could not say. The application asks the service once, on its first navigation, whether a gate exists and whether this browser has passed it. If that question fails to get an answer, the application assumes there is no gate and lets the browser through — it fails open. On a service whose gate is in fact on, the result is a window that opens on the screen that was asked for and can then load nothing: no project, panels that never fill, and requests the service is refusing behind them. The menu bar is the giveaway — no version mark beside the brand image, and no sign-out button at the right end, because both are filled in from the answer that never arrived. In this state nothing offers a sign-in card and nothing redirects to one. Reloading the page puts the question again; it is re-asked on every navigation until it is answered, and once the service answers, the browser reaches the card in the ordinary way.

Signing out

The sign-out button sits at the right end of the menu bar, after Show Log. It is labelled with the signed-in user name — or with Logout when the service reported no name — and its tooltip reads Log out. It is drawn only while the gate is on and this browser is signed in.

Press it to end this browser's session. The page is torn down and rebuilt at the sign-in card. If the request to the service did not get through, the service still holds this browser as signed in, so the card sends it straight back into the application — press the button again.

What ends is one browser's admission. Another browser signed in under the same account is untouched and carries on working: the service keeps no register of who is connected, so there is no notice that an account is in use elsewhere, and no limit on how many browsers may hold it.

When a session ends on its own

A sign-in belongs to the browser session, so closing the browser ends it whatever the configuration says. While the browser stays open it lasts up to the number of hours in the Auth section's SessionHours setting — eight in the configuration as shipped, and never less than one whatever the setting says. Sliding expiration is on by default, and the service describes that setting as refreshing the expiry with activity.

Nothing announces that the end is near. There is no countdown, no prompt and no way to extend. The first sign is the sign-in card, which arrives the moment a screen next asks the service for something and is refused.

Recovery is a second sign-in. The screen that was open travels in the redirect argument, so signing in comes straight back to it; what does not come back is anything entered or arranged on that screen and not yet saved, because a sign-in reloads the application from scratch. The session is the browser's admission and nothing else — ending it changes what that browser may ask for, not what the service is holding.

Locked out

A gate that is on over an empty account list admits nobody, and it looks exactly like a mistyped password — the same single red line, for every name tried, in every browser. Nothing counts attempts and nothing locks after a bad one, so a refusal that repeats for every account anyone can think of is the symptom to read as a configuration problem rather than a credential one.

The way out is one entry. Add a username and password pair to the Users list in the Auth section of the service's configuration, then restart the service — that list is read once at startup.

The state is neither permanent nor damaging. The service runs normally the whole time it is turning browsers away; it simply has no credential to match one against.
