HiNC Educational Version
CNC milling simulation software for education
Educational Package Features
HiNC Educational Version is CNC milling simulation software for education.
-
3-5 axis milling geometric simulation -
Virtual machine tool simulation -
Collision detection and volume subtraction -
NC program verification and validation -
Multi-seat licensing for educational institutions
User Interface Showcase
Main User Interface
HiNC Main Window - Complete simulation environment with 3D visualization
Tool House Management

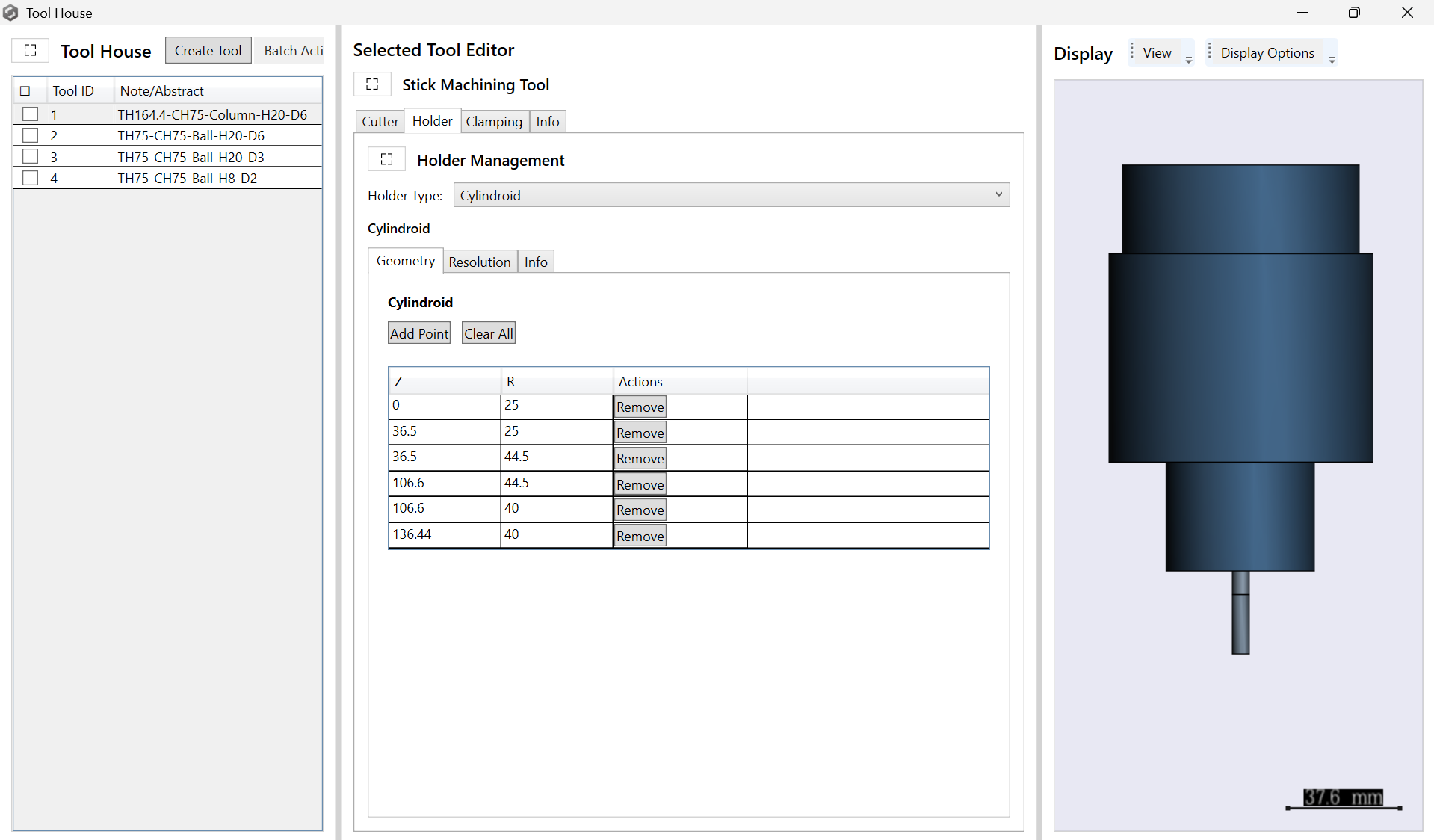

Tool House - Tool library management interface
- Supports APT-Profile or STL format geometry cutters
- Holder enabled
Workpiece Setup

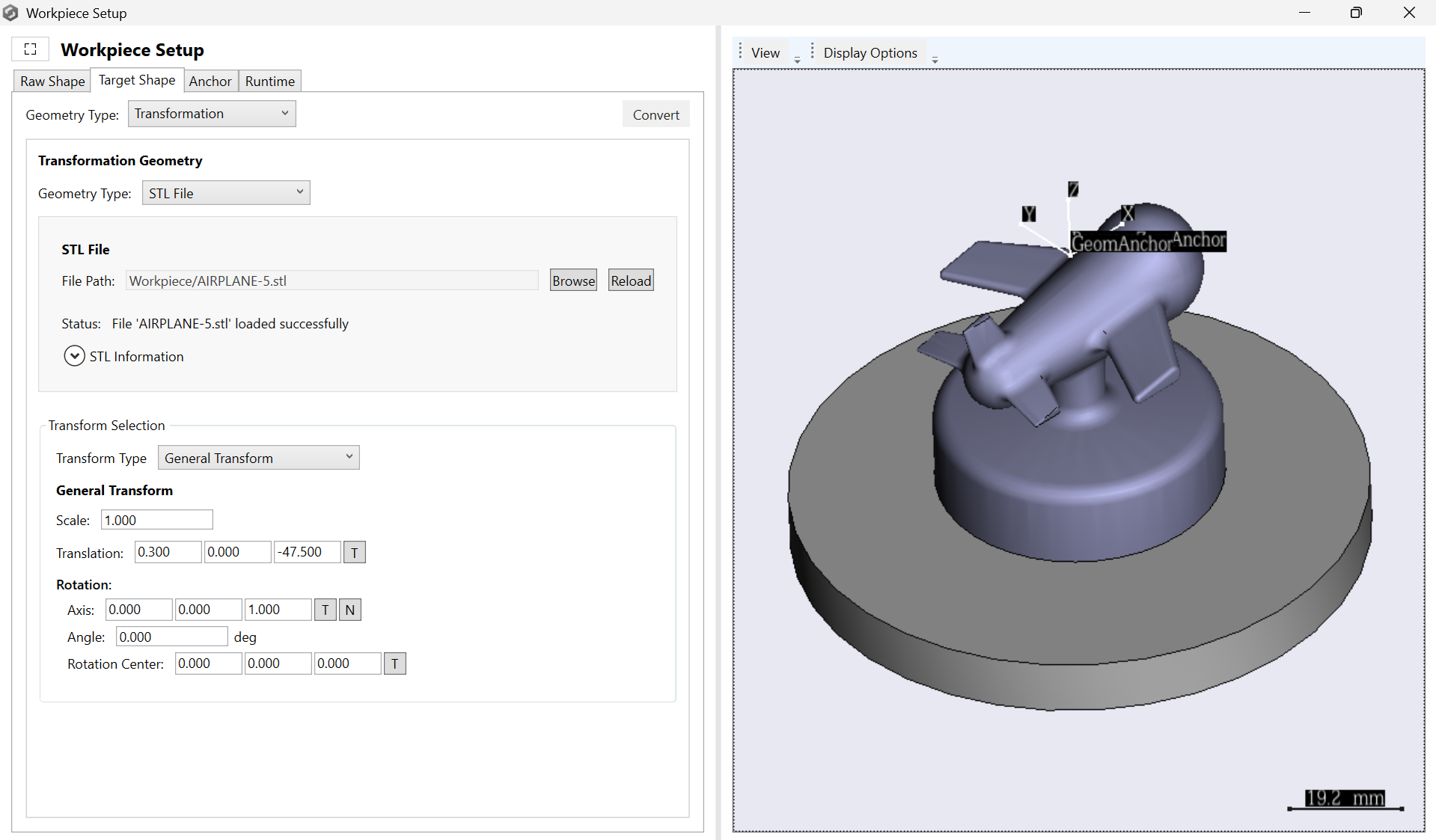

Workpiece Design - Workpiece geometry configuration
- Supports custom definition or STL format geometry
Controller Interface

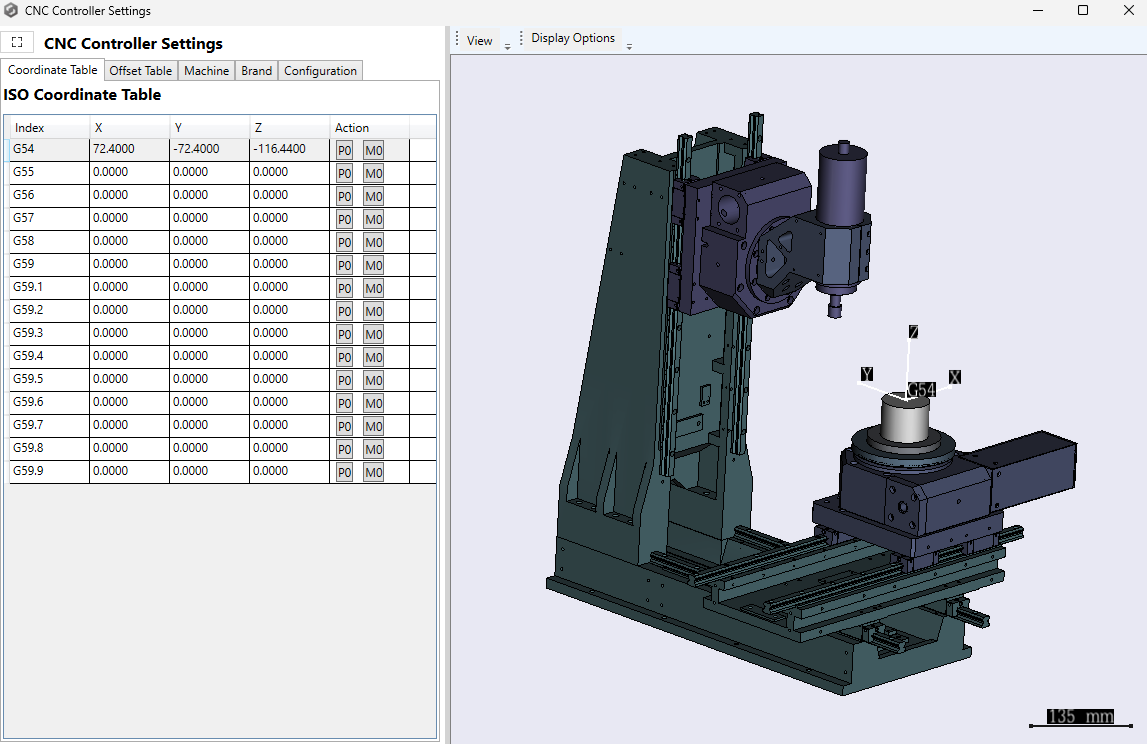

Controller Coordinate Table - CNC coordinate system management
- Supports ISO (Fanuc) coordinate tables and tool compensation tables
Mission and NC File Management

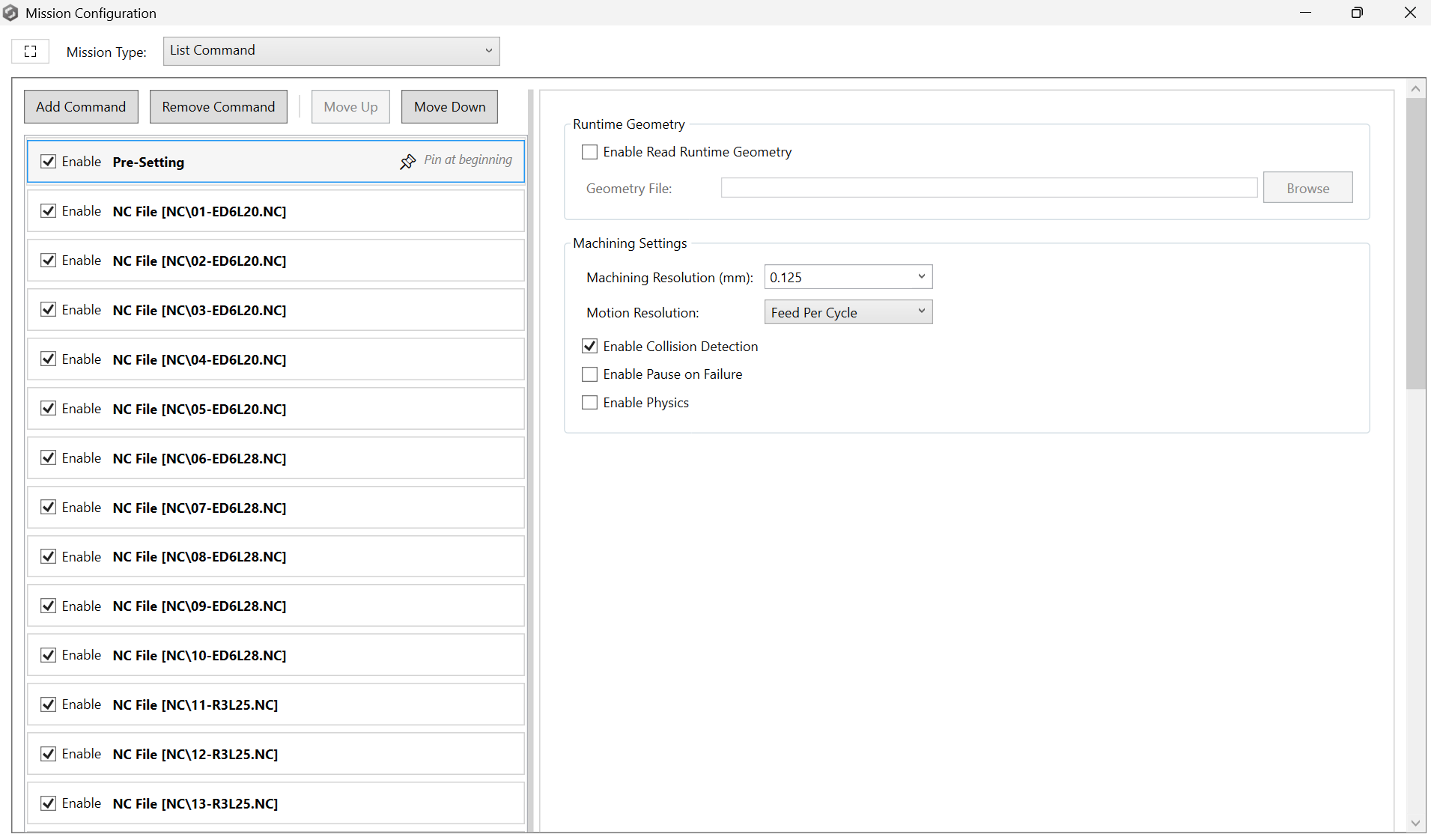

NC program management and execution planning
- Supports common ISO (Fanuc) NC commands
- Most macros are not supported
System Requirements
Operating System
Windows 10 or later
Memory
8GB+ RAM
Graphics
OpenGL 4.4 compatible graphics card or integrated graphics.
(Most computers manufactured within the last 15 years meet this requirement)
