Insert Cutter

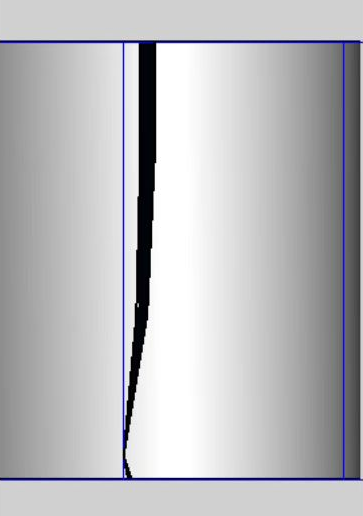

Insert cutters can be modeled in the virtual environment. See the examples below.
| Z | R | S.Ang. | R.Ang. |
|---|---|---|---|
| 0 | 8 | 1 | 3 |
| 0.2 | 8 | 0.5 | 3 |
| 0.4 | 8 | 0 | 3 |
| 0.5 | 8 | 0 | 3 |
| 3 | 8 | 3 | 3 |
| 6 | 8 | 4 | 3 |
| 8 | 8 | 4 | 3 |
Insert cutters can be modeled in the virtual environment. See the examples below.
| Z | R | S.Ang. | R.Ang. |
|---|---|---|---|
| 0 | 8 | 1 | 3 |
| 0.2 | 8 | 0.5 | 3 |
| 0.4 | 8 | 0 | 3 |
| 0.5 | 8 | 0 | 3 |
| 3 | 8 | 3 | 3 |
| 6 | 8 | 4 | 3 |
| 8 | 8 | 4 | 3 |
